The smallest band in the Planar Magnetics range. Typical applications are Power over Ethernet, telecom line cards, isolated gate drive and industrial DC-DC converters.
17.8 X 21 X 7mm
ER14R1
L X W X Hmm
ELT18
L X W X Hmm
168R1
16 X 16.2 X 7.6mm
168F1
16 X 16 X 7.6mm

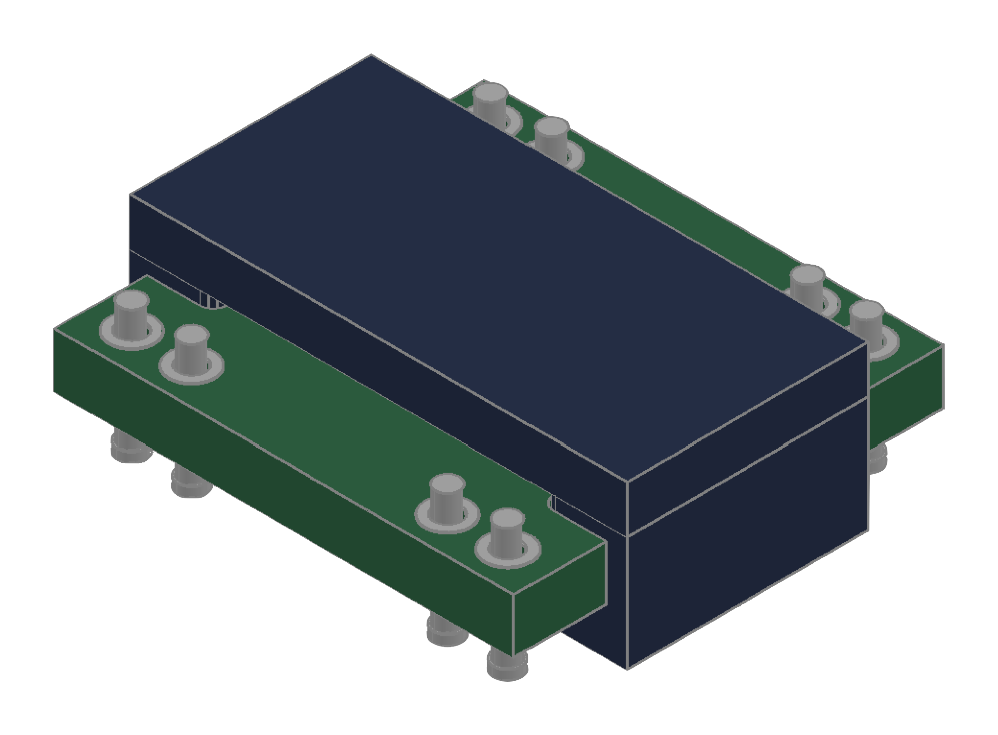

N20R1
17.8 X 21 X 7mm
N20F1
17.8 X 21 X 7mm
Specifications, dimensions and winding data for each series are available on request. Tell us your input voltage, output voltage and power and we will confirm the closest standard part.
