50-150 Watt

50-150 Watt

Telecom and industrial DC-DC, PoE++, battery chargers and small isolated supplies.

Planar Transformers

Series in this range

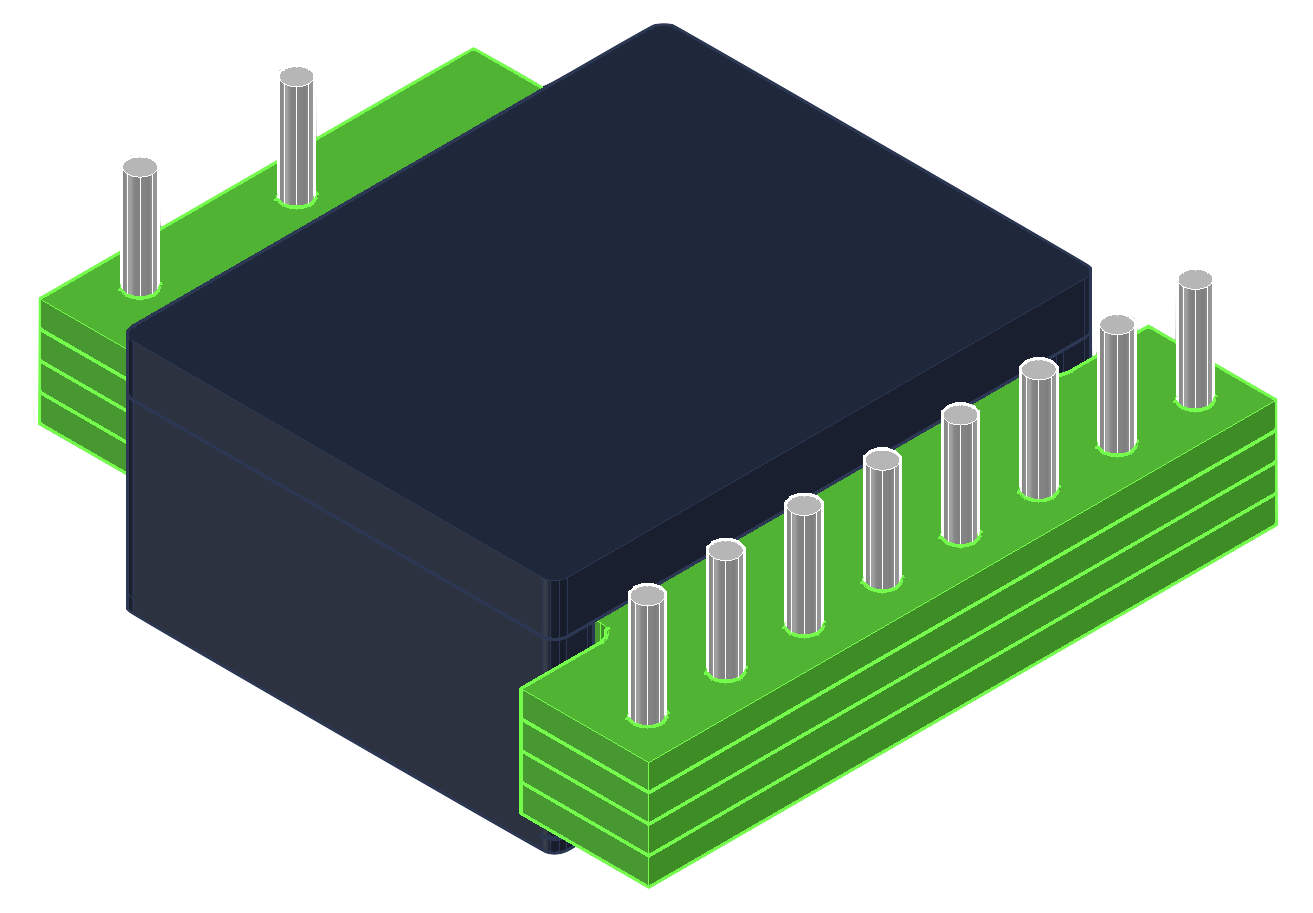

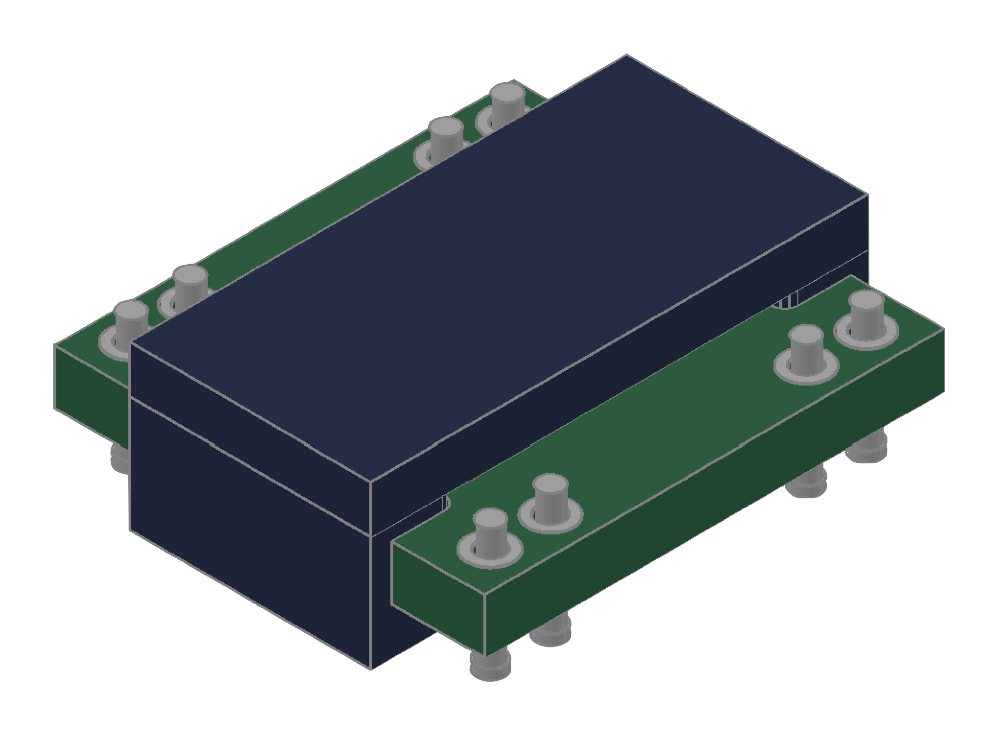

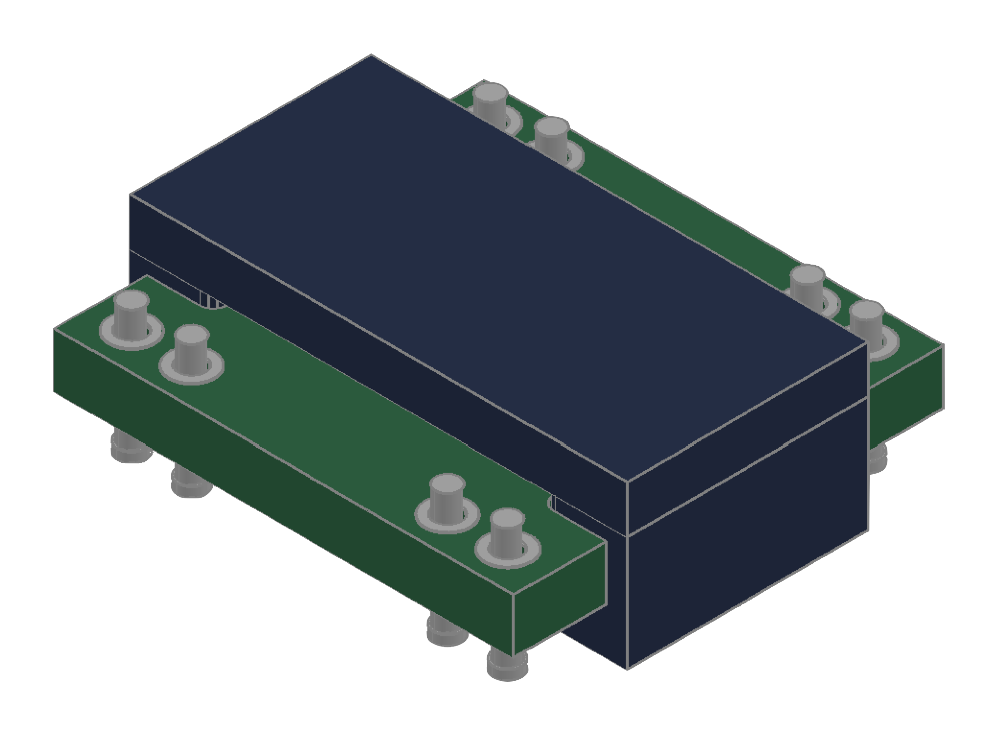

N20R2 N20R2 planar transformer 17.8 X 21 X 7mm 40R2 40R2 planar transformer 23.4 X 20.1 X 9.8mm 55R2 55R2 planar transformer 30 X 26 X 10.2mm D26R3 D26R3 planar transformer L X W X Hmm P20R2 P20R2 planar transformer 17.8 X 21 X 7mm P20F2 P20F2 planar transformer 23 X 21 X 12mm ELT22R1 ELT22R1 planar transformer L X W X Hmm ELT22R2 ELT22R2 planar transformer L X W X Hmm D26R6 D26R6 planar transformer L X W X Hmm

Specifications, dimensions and winding data for each series are available on request. Tell us your input voltage, output voltage and power and we will confirm the closest standard part.

Request a quote
